Cleanroom Observation Windows
Flush, double-glazed view panels and windows, fully sealed into the partition system — visibility without breaking the clean envelope.
Flush, double-glazed view panels and windows, fully sealed into the partition system — visibility without breaking the clean envelope.
What it is: A flush-mounted, double-glazed observation window built into the cleanroom partition or door. It gives staff and visitors full visibility into the clean area while the sealed frame keeps the room airtight and dust-free — no gaps, no particle traps.
Where to use: corridor-to-cleanroom viewing, cleanroom doors, laboratories, operating rooms, pharmaceutical workshops, food plants — anywhere you need to see in without letting contamination out.
Standard sizes — custom sizes available on request.
| Model | Standard Size | Glazing | Frame | Highlight |
|---|---|---|---|---|
| Observation Window (flush) | 600×600 mm | Double, tempered | Stainless / color steel | Flush with partition surface |
| Observation Window (large) | 800×800 mm | Double, tempered | Stainless / color steel | Wider view for corridors & labs |
| Door Vision Panel | 300×600 / 400×800 mm | Double or single | Aluminum / stainless | Built into cleanroom doors |
| Custom / Irregular | Any size | Tempered / laminated / wire | Any finish | Made to your drawing |
Where our observation windows are installed — see them working in actual cleanroom projects.
Windows between the clean corridor and production rooms — staff check the process without entering the clean area.

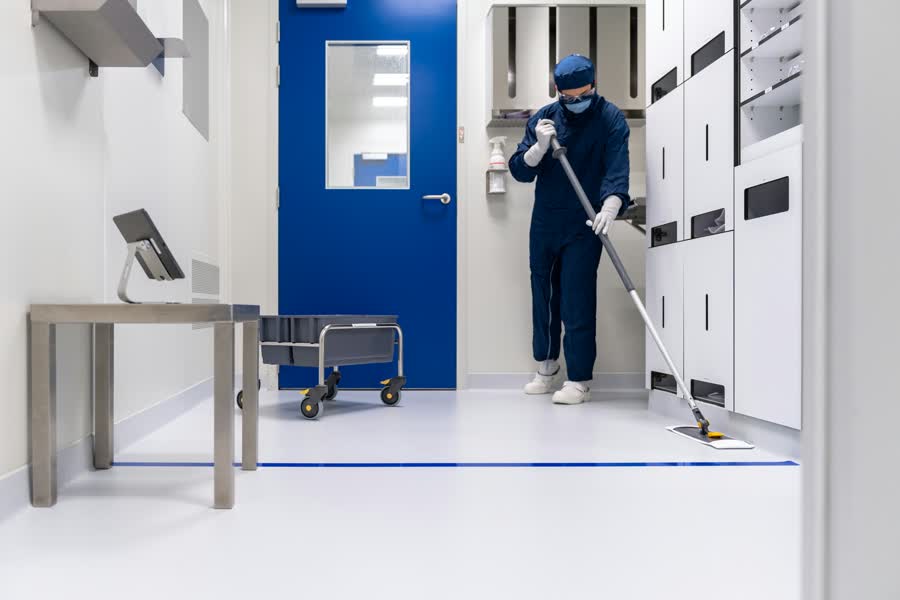

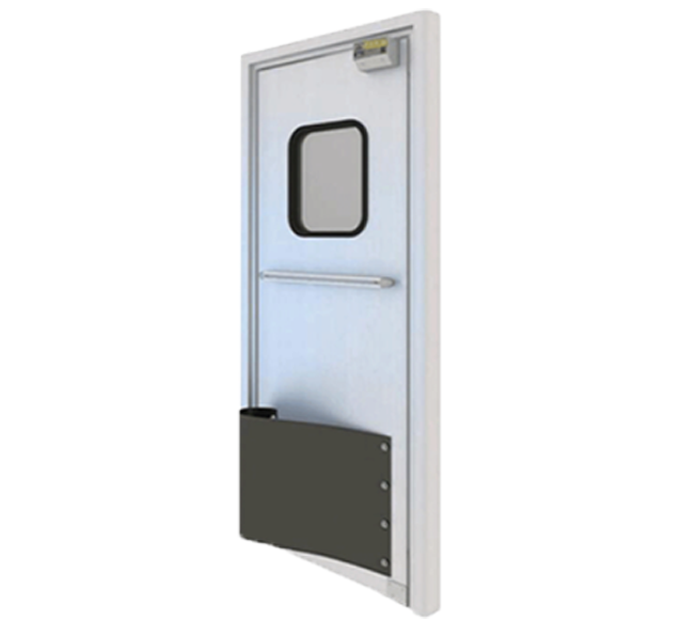

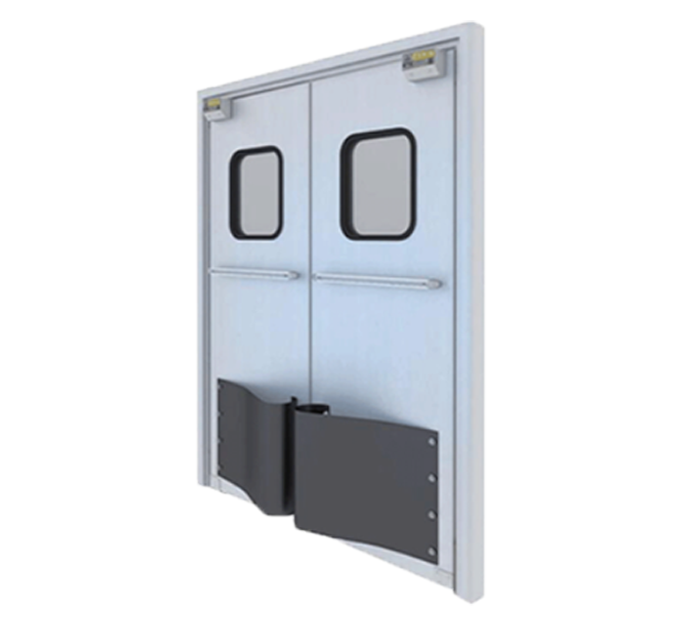

Built into cleanroom swing doors so people can see through before entering — common in GMP corridors.
Observation windows in lab and OR partitions for supervision and teaching without contamination.
Windows beside pass boxes and packaging lines to monitor material flow between zones.
